MDUI18060E
MDUI18060E
**Call for Price**

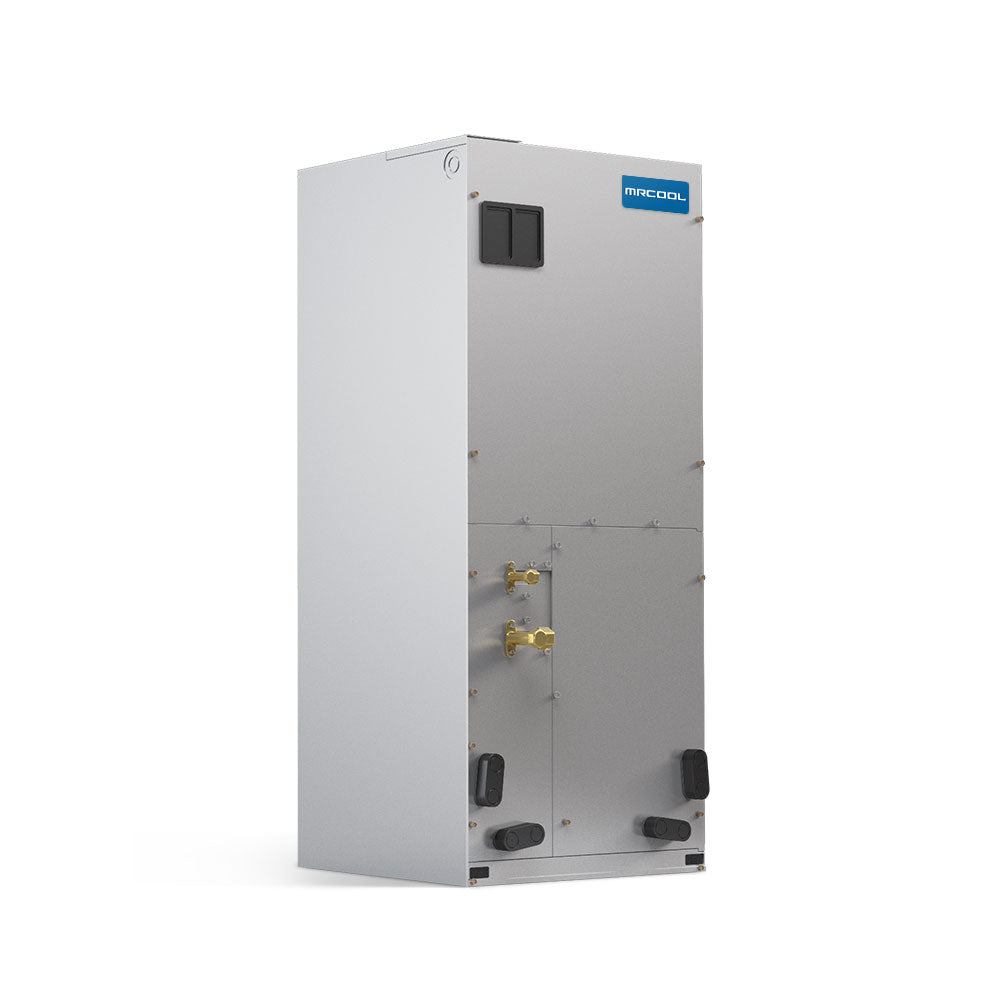

Universal High ESP 54000 BTU Air Handler
The new Universal High-ESP Air Handler has been designed for use in high static pressure applications such as a manufactured or mobile home, or in a system that has restrictions in the ductwork which would place a strain on a conventional air handler not rated for high external static pressure. This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance. The unit is capable of reaching a maximum static pressure of 250Pa. It offers multiple installation positions (vertical, horizontal left, or horizontal right) for an easy fit into many applications. The Universal High-ESP Air Handler also uses a durable metal filter that is both easy to clean and corrosion resistant to ensure it has a long service life.
- Up to 17 SEER
- High Efficient Energy Saving DC Fan Motor
- Internal Fan Blade Creates Low Noise
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- High Efficient Energy Saving DC Fan Motor
- Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
- Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
- Multi-Position Installation: Upflow or Horizontal
- 10 Year Registered Limited Warranty
- 2 Step Condensation Protection
Product Specifications
Cooling Capacity | 54000 BTU |
Heating Capacity | 54000 BTU |
Electrical |
208/230 V, Phase 1, 60 Hz |
Refrigerant Type | R-410A |
Height | 57in |
Width | 21-1/4in |
Depth | 24-3/4in |
Weight | 203 lbs |
